5” touch screen Data Unit

The DU9 is a high-end member of the BMSvision data collection terminals featuring a 5” touch screen and a graphical intuitive web-based user interface for user friendly interaction with the operator. The DU9 interacts as a front end and is the HMI for all BMSvision’s Master systems.

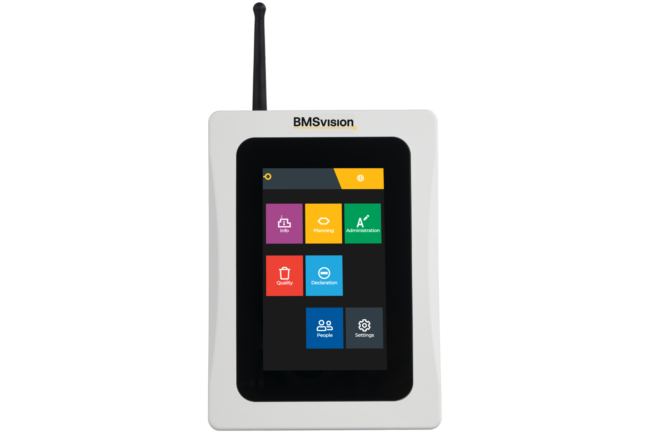

DU9 Front No Cable Entries Home Screen Weaving EN background
  • Input or retrieve data in real time

  • Access data accurately and quickly

  • Enable data exchange between machines


  • Direct access to all pages.
  • Wireless (Bluetooth class 1) via WDL-Server or wired (Ethernet) connection to the central system.
  • Remotely operable from any device that has an HTML 5 browser with Java script.
  • Continued operation and machine monitoring in case of network or server failure (optional).
  • On screen language selection and unicode Chinese supported.
  • Optional configurable pages.


  • Manual entry of down time reasons, scrap input,..
  • Display of production information: OEE, KPI’s, units produced,..
  • Display of planning information: actual job status, jobs planned,..
  • Energy monitoring
  • Operator tracking

Submit your data and you will be contacted by one of our experts

Personal data

Your question

Your data will only be used for further contact regarding the event. By submitting your request you agree to our privacy policy

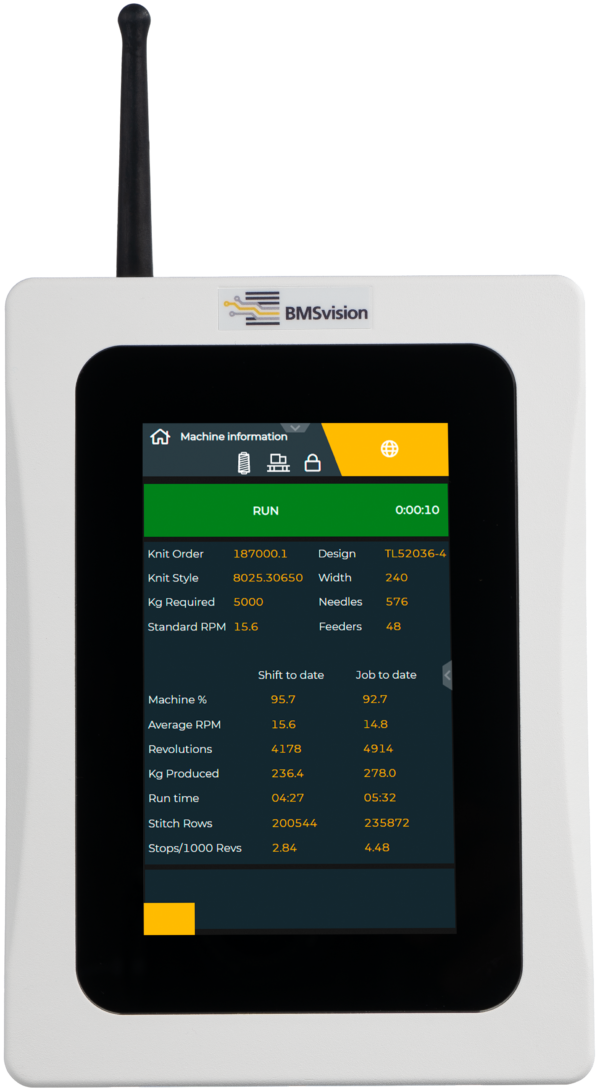

DU9 Front No Cable Entries Machine Information Knitting EN
